Debugging Minecraft Network Traffic

This document describes how to debug Minecraft network traffic to inspect how packets are sent with wireguard.

If you don’t want to use wireguard then this project can come in handy for you: https://github.com/adepierre/SniffCraft

Prerequisites

First, encryption and compression must be disabled. The compression threshold should be set to 1024. You can find it in this file config/steel_config.json5, which will be generated after the first start.

You will need:

• A local Minecraft server
• Wireshark running with root privileges (or proper permissions) to capture traffic on localhost

Captured packets can be compared with the official protocol documentation: https://minecraft.wiki/w/Java_Edition_protocol/Packets

This helps to understand all packet types and what they describe.

Wireshark Setup

You can start Wireshark immediately and observe the packets, but for better readability it is recommended to compile and use a Wireshark dissector plugin.

Minecraft Wireshark Dissector

Repository: https://github.com/Nickid2018/MC_Dissector

Requirements:

• Wireshark 4.6 (recommended)

The best recommendation is to compile the plugin yourself using the instructions in the ci.yaml file of the repository.

For Linux:
After compilation, copy the generated .so file to:

~/.local/lib/wireshark/plugins/<Wireshark Version>/epan

For Windows:
After compilation, copy the generated .dll file to:

plugins/<Wireshark Version>/epan

Adjust the path according to your Wireshark version.

Protocol Data Repository

Clone the protocol data repository:

https://github.com/Nickid2018/MC_Protocol_Data

Wireshark Configuration

Start Wireshark as a non root user! (on Linux, for loopback capture, your user must be in the wireshark group).

Then navigate to:

Preferences → Protocols → Minecraft

Select the protocol and set the path to the cloned MC_Protocol_Data repository. After that, restart Wireshark.

Useful Display Filter

To get a better overview of Minecraft traffic, use this filter:

mcje

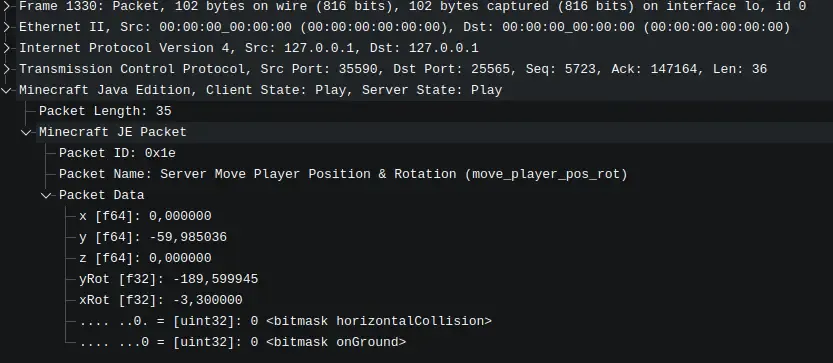

Result

At the end, the packets will be far more readable than raw network data, making protocol debugging much easier.

Another useful resources

These resources can you help to get a deeper understanding:

• Decompiled Minecraft
• https://minecraft.wiki/w/Java_Edition_protocol/Packets
